Product detail:

Features

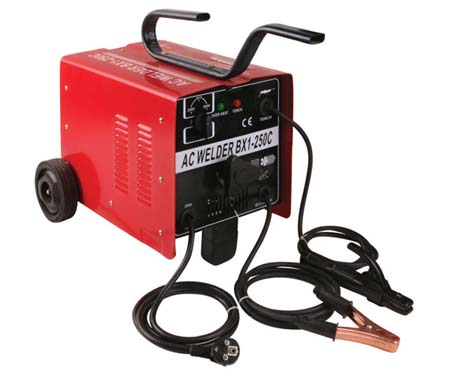

Moving coil type transformer, suitable 380V/220V AC supply.
Compact, light, east to carry. Suit for mobile, go out and small-scale construct and busywork.
Provided with automatic temperature protector and air-cooling unit, high efficiency and safety
Application
Hobby and small repair shops or installation worksites In outdoor environments.

ACCESSORIES:
electrode holder, earth clamp, welding cable, brush/hammer, protective mask.

ITEM

BX1-130-C

BX1-160-C

BX1-180-C

BX1-200-C

BX1-250-C

Iput voltage(V)

230

230

230-400

230-400

230-400

Frequency(hz)

50

50

50-60

50-60

50-60

Phase

Single phase

Single phase

Double phase

Double phase

Double phase

Current range(A)

55-130

55-160

60-180

60-200

65-250

Rated input capacity(KVA)

5

6.2

7

7.5

10

No-load voltage(V)

48

48

48

48

48

Duty cycle(%)

10

10

180A@10%
75A@60%

200A@10%
82A@60%

250A@10%
100A@60%

Usable electrodes(mm)

2.0-3.2

2.0-4.0

2.5-4.0

2.5-4.0

2.5-5.0

Protection class

IP21S

IP21S

IP21S

IP21S

IP21S

Insulation class

H

H

H

H

H

N.w/G.w(AL)(KG)

16/19

18/21

20.5/23.5

22/25

25/28

Carton size(mm)

380*260*330

380*260*330

400*260*290

400*260*290

410*260*290
